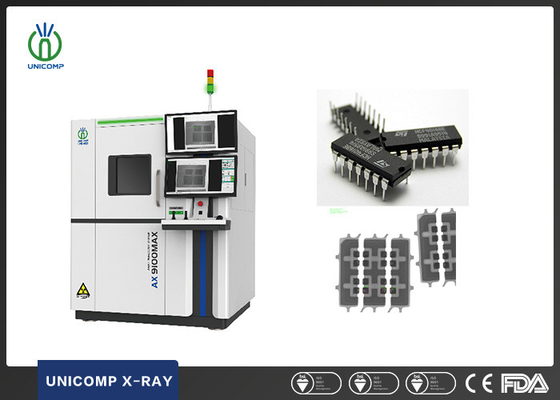

CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure

CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure
CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure

Large Image :  CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: AX9100max
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: can negotiate
Packaging Details: Unicomp Wood.
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 100set/montrh
Detailed Product Description
High Light:

x-ray machine ax9100max

,

Automatic Inspection Electronics X-ray Machine

,

CNC Programable Electronics X-ray Machine

Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.





  • Application Fields





CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure 0





  • Functions and Feature







CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure 1

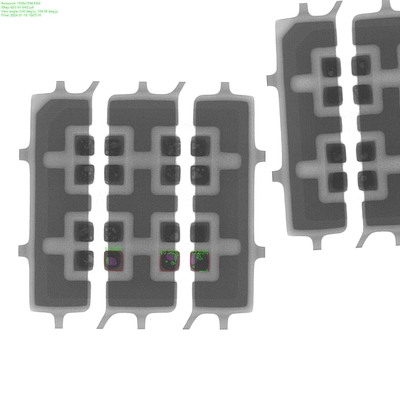

  • Inspection Image





CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure 2







System Summary
Footprint 1450(W)×1680(D)×1850(H)mm
Machine Weight 2400 kg
Power Supply 220AC/50Hz
Packaging Dimension 1710(W)×1950(D)×1875(H)mm
Power Consumption 3.5 kW
Packing Weight 2600 kg
X-Ray Tube
Tube Type Type Sealed type
Max. Power Output 65W
Voltage 0~130kV (Adjustable)
Focus Spot Size ≤8μm
Imaging System
Detector High Resolution FPD
Pixel Size ≤85μm
Effective Detection Area 130*130mm
Pixel 1536*1536
Frame Rates 20fps
System Magnification 1600X
Software
One-click Zoom in & out Fast & Automatic navigation of ROI region
Fixed-point following during FPD tilting Table automatic following while Axis tilting seperately
Algorithms For Image Super-Resolution Reconstruction Intelligently improve the overall image clarity with one-click
Automatic images comparison Intelligently adjust overall image contrast with one-click
Variety of filter processing algorithms Sharpening, enhancement, color reversal, denoising image preprocessing functions
Motion Control System
Movement Control Method Dual Joystick, Keypad & Mouse
Max. Loading size Ф620mm
Max. Inspection size 600*450mm
Tilting Inspection Maximum 60°
Objective Stage Horizontal Rotation 360°
Industrial PC
Operating System Windows 10 64bit
Monitor(Dual) 27 "4K HD display
Hard disk 1TB
RAM 16G
CPU model Intel i7 Processor
Other Features
Door Open Manually
Safety Operation Electromagnetic Interlock, Warning Light and Real-time Radiation Leakage Monitor
Authority Management Fingerprint Access Management System, and Support Password Accessing
X-Ray Safety <1μSv/h (Meets All International Standards)

* Specifications are subject to change without notice, All trademarks are the property of the system maker.









  • Dimensions and Appearance







CNC Programable Automatic Inspection Electronics X-ray Machine AX9100MAX With Tilting Angle 60°for IC Curvature Measure 3
