Product Details:
Payment & Shipping Terms:
|
| Footprint: | 1550*1068*1794mm | Machine Weight: | 2000KG |
|---|---|---|---|
| Voltage: | 160kV | Power Supply: | 380AC/50Hz |
| Minimum Focal Spot: | 0.5 | Power Consumption: | 480W |
| Table Rotation: | ±360° | Mechanism Speed: | ≥70mm/s |
| Radiation Dose: | <1µSv/h | ||
| Highlight: | Comprehensive Inspection NDT X Ray Equipment,Powerful NDT X Ray Equipment,160kV NDT X Ray Equipment |
||
| System
Summary
|
Footprint
|
1550*1068*1794mm
|
|
Machine weight
|
2000KG
|
|
|
Packaging Dimension
|
1820*1560*2150mm
|
|
|
Power supply
|
380AC/50Hz
|
|
|
Power consumption
|
6kW
|
|
|
X-Ray Tube
|
X-ray tube type
|
Sealed
|
|
Voltage
|
160kv | |
|
Minimum focal spot
|
0.5
|
|
|
Power consumption
|
480w | |
| imaging system | Detector | Amorphous silicon |
| Effective dectection area |
427*427[mm]
|
|
| Pixel size |
139μm
|
|
| pixel matrix |
3072*3072
|
|
| Motion Control System | Motion Control Mode | CNC automatic /Manual |
| Detection imaging mode | left to right | |
|
Table rotation
|
±360°
|
|
| Maximum loading weight |
30KG
|
|
| Maximum Inspection
Area
|
φ400*500[mm]
|
|
| Mechanism speed |
≥70mm/s
|
|
|
Software
|
ASTM standard atlas can be used to comparison, view
|
|
|
Automatically measure the porosity per unit area
|
||
|
Distance, Angle, diameter, polygon geometry measurement
|
||
|
CNC automatic detection
|
||
|
Other Feature
|
Door opening
|
Manual
|
|
Radiation dose
|
<1µSv/h
|
|
|
Console
|
Highly integrated console
|
|
|
Device management
|
Different management levels
|
|
Our Industrial X Ray Machine product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our trained technicians are available to provide assistance with installation, setup, and calibration of the machine. In addition, we offer ongoing maintenance and repair services to keep the machine running smoothly and to minimize downtime. Our team also provides training and consultation services to help users get the most out of the machine and to ensure safe and effective operation. Contact us for more information about our technical support and services.
Q: How about the package? Is it safe during the delivery?
A: All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.
Q: Do you provide the Warranty? How about the after-sales service?
A: 1-year warranty free for spare parts, Whole life technical support.
We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.
Q: If we come to your factory if you will provide free training?
A: Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.

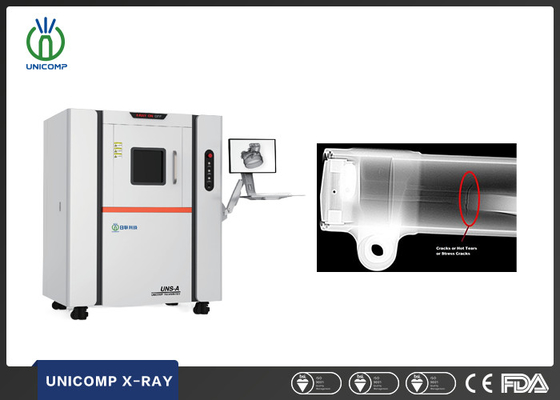

High resolution detection images can directly display the internal defects such as bubbles, cracks, impurities and porosity in the castings.
